TESLA
GEN 3 WALL CONNECTOR – 7.3m

The Tesla Gen 3 Wall Connector provides convenient high-speed AC EV charging with a 7.3 m cable, Wi-Fi connectivity, configurable charging current and power sharing for multiple Wall Connectors.
EV Charger

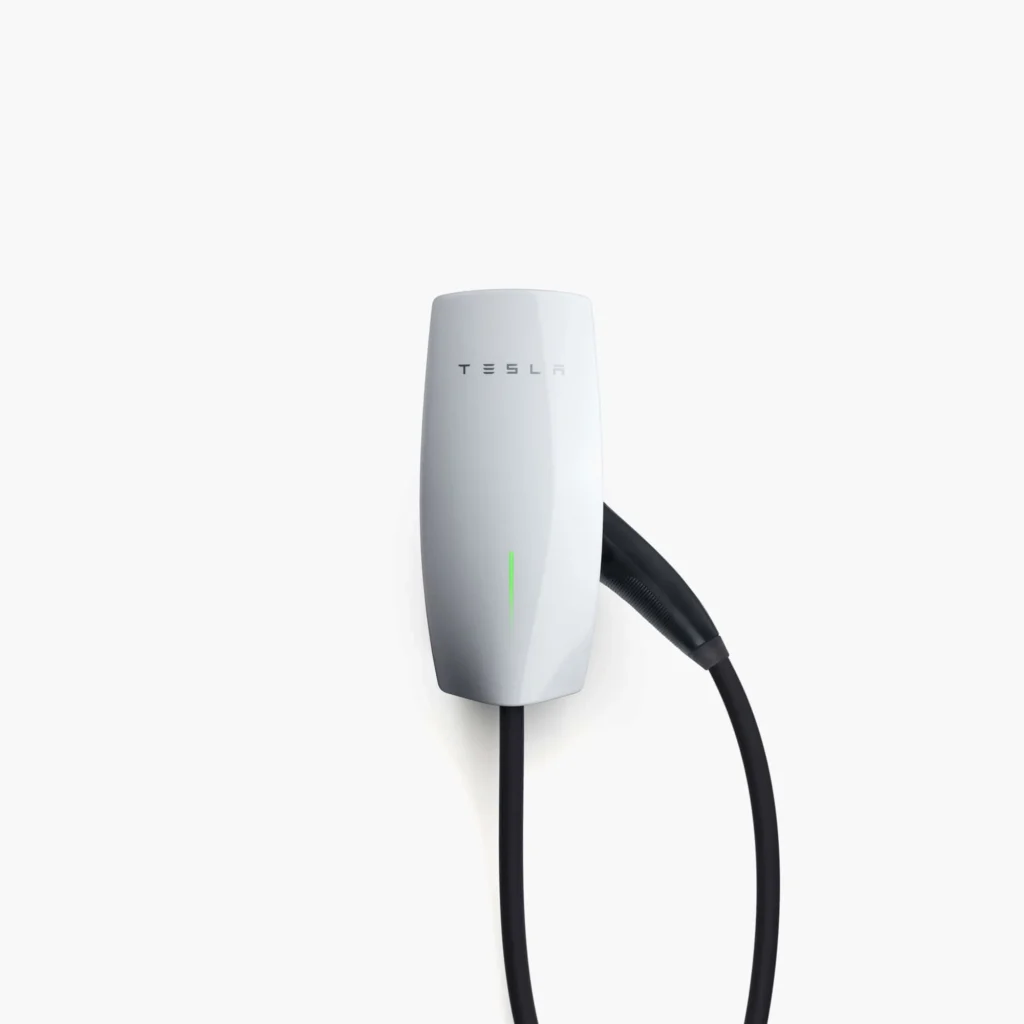

TESLA GEN 3 WALL CONNECTOR – 7.3m

The Tesla Gen 3 Wall Connector is a smart AC EV charger with a 7.3 m cable, up to 22 kW charging capability, Wi-Fi connectivity, Tesla App monitoring, configurable current and power sharing for multiple Wall Connectors.

$11,300.00
Inc. GST / Per Panel
In Stock
Brand TESLA
SKU / Model Tesla Gen 3 Wall Connector – 7.3 m
Warranty 4 Years
Compatible With
  • Tesla vehicles and compatible EVs using the appropriate charging connector
Add to Cart Download Datasheet
22 kWh Rated Power
4 Year Performance Warranty
345 × 155 × 110 mm (H × W × D) Dimensions
6.8 kg including wirebox || Cable Length 7.3 m (24 ft) Weight
Product Description

Tesla Gen 3 Wall Connector with 7.3m Cable

The Tesla Gen 3 Wall Connector is a permanently installed AC EV charger designed for residential, apartment, hospitality and workplace charging. It supports single-phase and three-phase electrical systems, provides up to 22 kW charging depending on the installation and vehicle, and includes Wi-Fi connectivity for remote monitoring, firmware updates and access control.

Product Description

EV Charger Technical Specifications

Specification Value
Brand TESLA
Model Gen 3 Wall Connector
Product Type AC EV Charger
Charging Modes Scheduled Charging / Standard AC Charging / Configurable Charging Current
Solar Charging Not directly specified as an integrated solar charging mode
Battery Integration Not directly integrated; can be used within an energy system subject to compatible external energy-management equipment
Monitoring Tesla App
Dynamic Load Control Yes – power sharing / automatic load management between multiple Wall Connectors
Connector Type Type 2 – Australian/NZ version
Protection Integrated residual-current detection; Type A + DC 6 mA; external branch-circuit breaker required
Maximum Current 32 A
Maximum Charging Power Up to 22 kW
Voltage 230 V single phase / 230 V L-L three phase / 400 V L-L three phase
Frequency 50/60 Hz
Current Adjustable by installer up to 32 A
Earthing TN / TT / IT
Cable Length 7.3 m
Wi-Fi 2.4 GHz 802.11 b/g/n
Residual Current Detection Type A + DC 6 mA
Ventilation Not required
Operating Temperature -30°C to +50°C
Storage Temperature -40°C to +85°C
Ingress Protection IP44
Charging Standard IEC 61851-1
Compatibility
Inverter
  • Not inverter-specific
Battery Systems
  • No direct battery integration
System Types
  • Residential EV Charging
  • Commercial EV Charging
  • Apartment EV Charging
  • Smart EV Charging
  • Apartment EV Charging
Other
  • Tesla App
  • Remote Diagnostics
  • Wi-Fi
  • Access Controls
  • Over-the-Air Updates
  • Power Sharing
EV Compatibility
  • Tesla vehicles and compatible EVs using the Australian Type 2 AC charging standard
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
