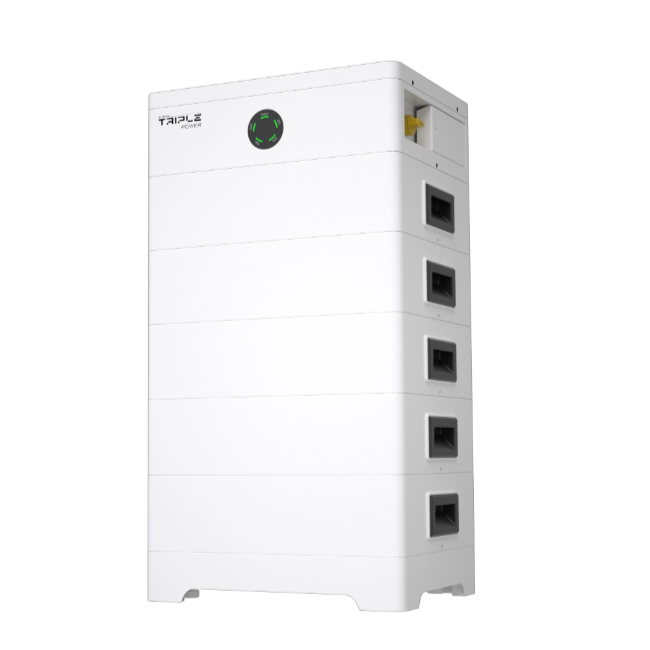

SolaX 3.6kWh
Solar Battery Module
T-BAT HS TP-HS36

High-voltage LFP battery module designed for SolaX T-BAT HS systems, providing scalable energy storage through modular series configurations.
Solar Battery

SolaX 3.6kWh Solar Battery Module – T-BAT HS TP-HS36

The SolaX TP-HS36 is a 3.6 kWh high-voltage LFP battery module designed for SolaX T-BAT HS energy storage systems. Multiple modules can be connected in series to create larger battery systems.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand SolaX Power
SKU / Model SOLAX-BAT-TP-HS36
Warranty 10-Year Limited Warranty
Compatible With
  • SolaX T-BAT HS high-voltage battery systems
  • Compatible SolaX hybrid inverters
Add to Cart Download Datasheet
3.6 kWh Rated Power
10 Years – subject to manufacturer warranty terms Performance Warranty
510 × 152 × 365 mm (W × H × D) Dimensions
Approx. 34 kg Weight
IEC 62619 / IEC 60730 / IEC 62040 / CE / UN38.3 Certificate
Product Description

SolaX TP-HS36 3.6kWh Battery Module

The SolaX TP-HS36 is a high-voltage lithium iron phosphate (LFP / LiFePO₄) battery module designed for SolaX T-BAT HS high-voltage energy storage systems. Each module provides approximately 3.6 kWh of nominal energy and can be connected in series to create scalable residential and commercial battery storage systems.

Product Description

Battery Technical Specifications

Specification Value
Model TP-HS36
Battery Module 3.6 kWh
Battery Chemistry Lithium Iron Phosphate (LFP / LiFePO₄)
Nominal Voltage 51.2 V DC
Nominal Capacity 72 Ah
Nominal Charge / Discharge Current 35 A
Maximum Charge / Discharge Current 50 A
Dimensions 510 × 152 × 365 mm
Weight Approx. 34 kg
Ingress Protection IP65
Installation Floor mounting
Operating Altitude Up to 3,000 m
System Type High-Voltage Energy Storage
Compatibility
Inverter
  • Compatible SolaX high-voltage hybrid inverters supporting T-BAT HS battery systems
Battery Systems
  • SolaX T-BAT HS Series
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • High-Voltage Energy Storage
  • Backup Power Systems
  • Commercial Energy Storage
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
