The FOX ESS CQ6-M 5.99kWh battery module is a high-voltage LFP energy storage solution designed for scalable solar and energy storage applications. With 5.99kWh nominal energy, 95% round-trip efficiency and a modular design, it can be combined with additional CQ6-S modules to create larger storage systems.

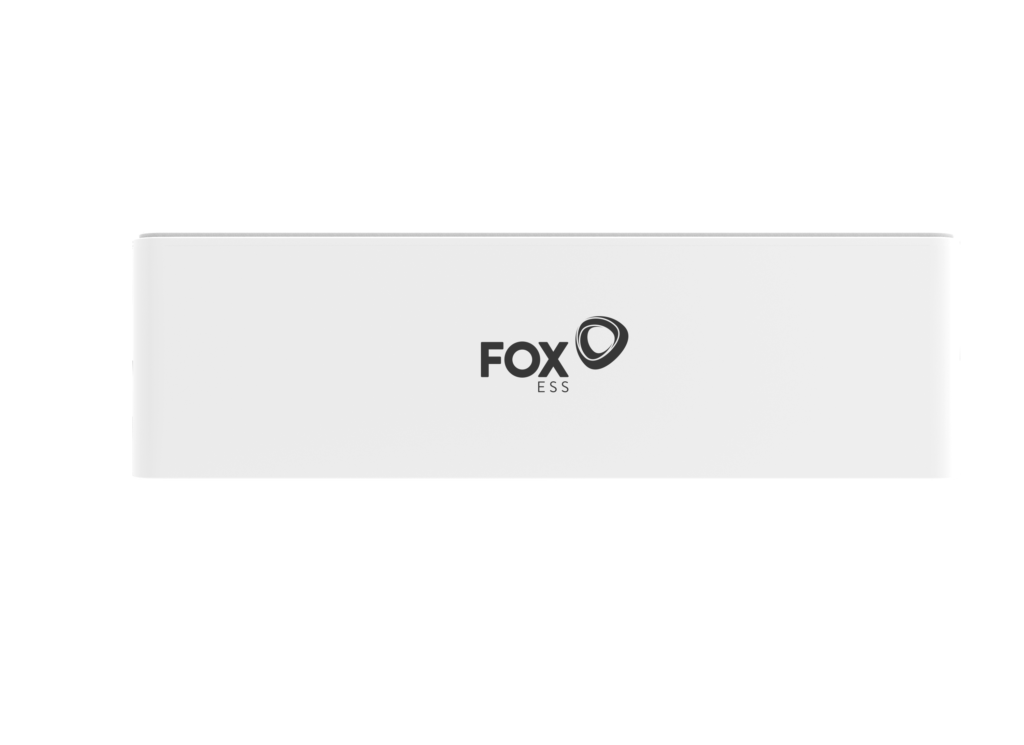

FOX ESS CQ6-M 6kWh Battery Module
The FOX ESS CQ6-M is a high-performance lithium iron phosphate (LFP) battery module designed for residential and energy storage applications. With a nominal energy capacity of 5.99kWh, the module forms part of the modular FOX ESS CQ6 high-voltage battery system and can be combined with additional CQ6-S modules to expand total storage capacity. The CQ6 system is designed for scalable energy storage and solar applications.
Battery Technical Specifications
| Specification | Value |
|---|---|
| Model | CQ6-M |
| Battery Chemistry | LFP (LiFePO₄) |
| Nominal Energy | 5.99 kWh |
| Nominal Capacity | 104 Ah |
| Nominal Voltage | 57.6 V |
| Battery Voltage Range | 52.2–65.7 V |
| Maximum Charge/Discharge Current | 100 A |
| Recommended Charge/Discharge Current | 50 A |
| Peak Discharge Current | 120 A for 60 seconds |
| Round-Trip Efficiency | 95% |
| Depth of Discharge | 100%*** |
| Operating Temperature | 0°C to +55°C charging / -10°C to +55°C discharging |
| Storage Temperature | -10°C to +50°C |
| Dimensions | 660 × 360 × 205 mm |
| Weight | 54 kg ±5% |
| Communication | CAN |
