FOX ESS 7kWh
Solar Battery
CQ7-M

The FOX ESS CQ7-M 6.96kWh battery provides high-voltage LFP energy storage with an integrated system controller and modular expansion capability for residential solar and energy storage applications.
Solar Battery

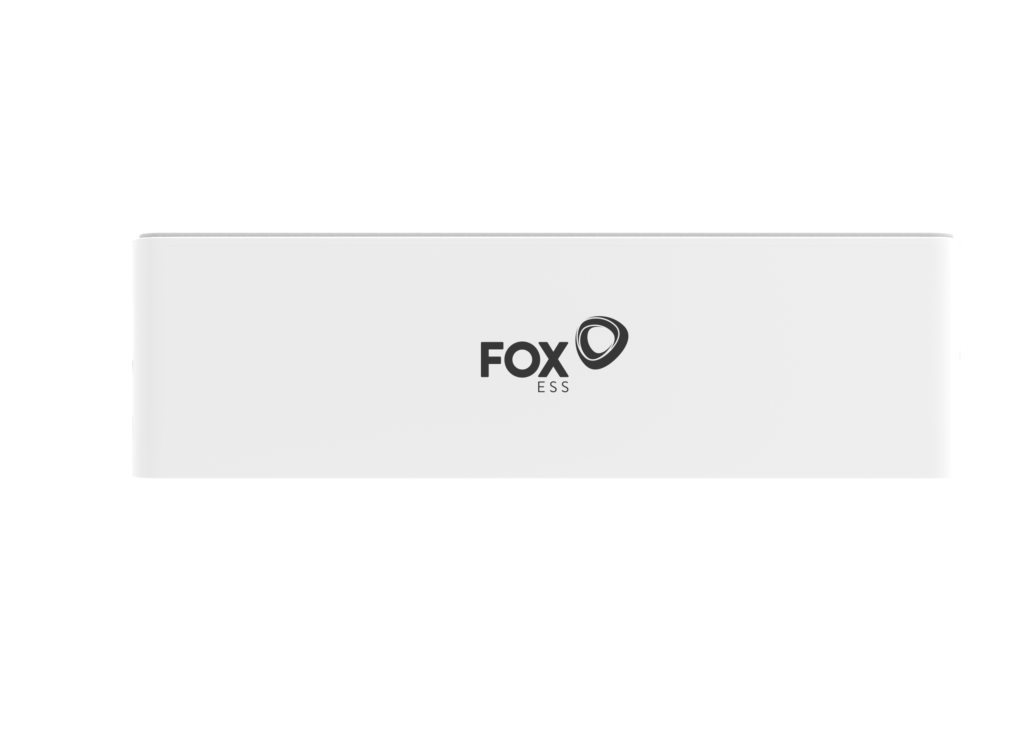

FOX ESS 7kWh Solar Battery – CQ7-M

The FOX ESS CQ7-M 6.96kWh battery module is a high-voltage LFP energy storage solution with an integrated system controller. With 100% DoD, IP65 protection and modular expansion capability, it is designed for residential solar and energy storage applications.

$5,400.00
Inc. GST / Per Unit
In Stock
Brand FOX ESS
SKU / Model ES-FOX-CQ7-M
Warranty 10-Year Warranty
Add to Cart Download Datasheet
10-Year Warranty Performance Warranty
660 × 360 × 155 mm (W × D × H) Dimensions
48.8 kG Weight
IEC 62619 / IEC 61000-6-1/2/3/4 / UN38.3 Certificate
Product Description

FOX ESS CQ7-M 6.96kWh Battery Module

The FOX ESS CQ7-M is a high-voltage lithium iron phosphate (LFP) battery module designed for residential energy storage applications. With a nominal capacity of 6.96 kWh, it includes the system controller and battery module. It forms the master unit of the modular CQ7 battery system and supports expansion with additional CQ7-S modules.

Product Description

Battery Technical Specifications

Specification Value
Model CQ7-M
Battery Chemistry LFP (LiFePO₄)
Nominal Energy 6.96 kWh
Nominal Voltage 57.6 V
Battery Voltage Range 52.2–65.7 V
Maximum Charge/Discharge Current 80 A
Depth of Discharge 100%
Round-Trip Efficiency >95%
Operating Temperature 0°C to +55°C charging; -10°C to +55°C discharging
Storage Temperature -10°C to +50°C
Dimensions 660 × 360 × 420 mm
Weight 105.5 kg ±5%
Communication CAN
IP Rating IP65
Compatibility
Inverter
  • Compatible FOX ESS high-voltage inverter with CQ7 system
Battery Systems
  • FOX ESS CQ7 Series
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • Commercial Energy Storage
  • Backup Power Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
