GOODWE 5.1kWh
Solar Battery
GW5.1-BAT-D-G20

The GOODWE GW5.1-BAT-D-G20 is a high-voltage lithium iron phosphate (LFP / LiFePO₄) battery module designed for residential and energy storage applications. It provides 5.12 kWh rated energy and 5.0 kWh usable capacity for compatible GOODWE energy storage systems.
Solar Battery

GOODWE 5.1kWh Solar Battery – GW5.1-BAT-D-G20

The GOODWE GW5.1-BAT-D-G20 is a 5.12 kWh high-voltage LFP battery module with 5.0 kWh usable energy. It provides up to 5.0 kW continuous system input/output power and 7.5 kW peak output for 10 seconds, with IP66 protection and optional heating for compatible GOODWE energy storage systems.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand GOODWE
SKU / Model GW5.1-BAT-D-G20
Warranty 10-Year Product
Compatible With
  • GOODWE ESA and supported Lynx D G2 / high-voltage energy storage systems
Add to Cart Download Datasheet
10-Year Warranty Performance Warranty
800 × 326 × 270 mm (W × H × D) Dimensions
57.5 kg ±1 kg Weight
IEC 62619 / IEC 60730 / EN 62477 / IEC 63056 / IEC 62040 / CE / CEC / VDE 2510 Certificate
Product Description

GOODWE 9.0kWh Battery Module

The GOODWE GW9.0-BAT-D-G20 is a high-voltage lithium iron phosphate (LFP / LiFePO₄) battery module designed for residential and energy storage applications. With 9.0 kWh rated energy and 8.7 kWh usable capacity, it provides high-capacity energy storage with modular expansion capability for compatible GOODWE energy storage systems.

Product Description

Battery Technical Specifications

Specification Value
Model GW5.1-BAT-D-G20
Battery Chemistry LFP (LiFePO₄)
Rated Energy 5.12 kWh
Usable Energy 5.0 kWh
Depth of Discharge 100% (datasheet test conditions)
Operating Voltage Range 350–550 V (single-phase); 700–950 V (three-phase)
Maximum System Input Current 12.0 A
Maximum System Output Current 13.2 A
Maximum System Input Power 5.0 kW
Maximum System Output Power 5.0 kW
Peak Output Power 7.5 kW for 10 seconds
Charging Temperature -18°C to +55°C
Discharging Temperature -20°C to +55°C
Relative Humidity 5–95%
Maximum Operating Altitude 4,000 m
Noise Emission ≤29 dB
Communication CAN
IP Rating IP66
Dimensions 800 × 326 × 270 mm (W × H × D)
Weight 57.5 kg ±1 kg
Battery Heating Optional
Mounting Floor Stacked / Wall-Mounted

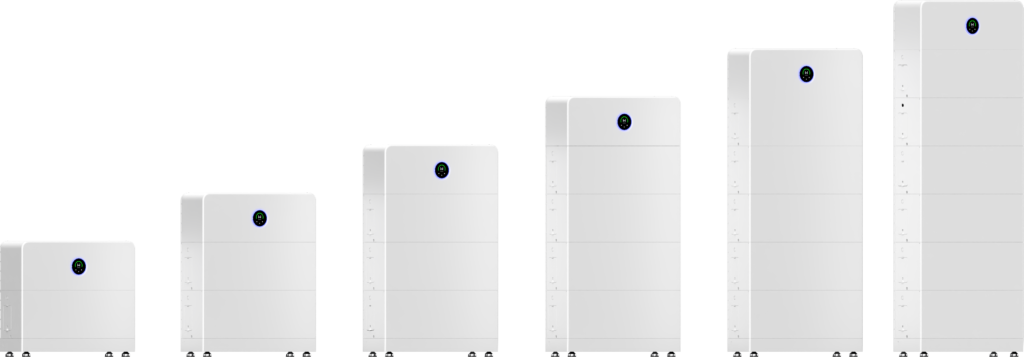

Scalability Up to 12 battery modules
Cycle / Safety 100% DOD test condition; LFP chemistry with integrated battery management and protection functions
Compatibility
Inverter
  • Compatible GOODWE high-voltage hybrid / energy storage inverters
Battery Systems
  • GOODWE ESA / Lynx D G2 compatible battery systems
System Types
  • Hybrid Solar Systems
  • Commercial Energy Storage
  • Battery Energy Storage Systems
  • Backup Power Systems
  • Residential Energy Storage
Other
  • Solar PV Systems
  • Self-Consumption
  • Energy Management
  • Backup Power
  • Load Shifting
  • Energy Storage
