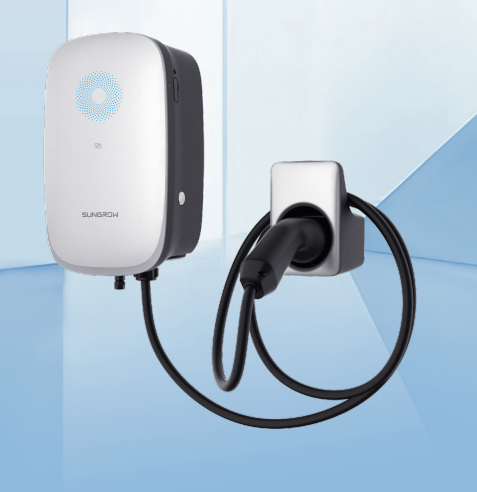

SUNGROW 22kW AC EV Charger
AC22E-01-IHM-7M

The Sungrow AC22E-01 provides flexible 7/11/22 kW AC charging with smart load management, solar optimisation, automatic phase switching and connected monitoring through Sungrow’s energy-management ecosystem.
EV Charger

SUNGROW 22kW AC EV Charger – AC22E-01-IHM-7M

The Sungrow AC22E-01-IHM-7M is a smart AC EV charger with a 7 m Type 2 cable and integrated iHomeManager package. It supports 7.4 kW single-phase and configurable 11/22 kW three-phase charging, solar optimisation, adaptive load management, automatic phase switching, app monitoring and OCPP 1.6J.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand SUNGROW
SKU / Model SUNGROW-AC22E-01-IHM-7M
Warranty 3 Years
Compatible With
  • Sungrow Hybrid / Energy Management systems; iHomeManager included with this package
Add to Cart Download Datasheet
22 kWh Rated Power
3 Year Performance Warranty
214 × 346 × 125 mm (W × H × D) Dimensions
<6.65 kg Weight
Product Description

Sungrow AC22E-01 22kW AC EV Charger with iHomeManager

The Sungrow AC22E-01-IHM-7M is a smart three-phase AC EV charger supplied with an iHomeManager and 7 m Type 2 charging cable. It supports configurable 7.4 kW single-phase or 11 kW / 22 kW three-phase charging, solar energy optimisation, adaptive load management, automatic phase switching, scheduled charging and remote monitoring.

Product Description

EV Charger Technical Specifications

Specification Value
Brand SUNGROW
Model AC22E-01-IHM-7M
Product Type AC EV Charger
Charging Modes Eco Charging / Fast Charging / Scheduled Charging / Customized Charging / EMS Charging
Solar Charging Yes – solar energy optimisation with compatible Sungrow system with 7 m Type 2 cable
Battery Integration Yes – can integrate with compatible Sungrow hybrid/storage systems and energy management
Monitoring iSolarCloud / iEnergyCharge App
Dynamic Load Control Yes – Adaptive Load Management (ALM)
Connector Type Type 2
Protection Integrated 6 mA DC fault-current detection / Overload Protection / Over-temperature Protection / Over-under-voltage Protection / Surge Protection / Ground-fault Monitoring / External RCBO/RCD required according to installation requirements
Grid Voltage 230/400 V
Grid Connection 3/N/PE
Grid Frequency 50/60 Hz
Maximum Input Current 32 A
Maximum Charging Power 22 kW 3-phase
Configurable Power 22 kW / 11 kW 3-phase; 7.4 kW 1-phase
Maximum Charging Current 32 A / 16 A configurable
Charging Voltage 230/400 V
Earthing TT / TN
Standby Consumption <6.5 W
Charging Cable 7 m
Connector Type 2
Communication RS485 / WLAN / Ethernet / 4G
Protocol OCPP 1.6J
RFID Mifare ISO 14443 A
MID Meter Optional
Cooling Natural convection
Compatibility
Inverter
  • Compatible Sungrow hybrid inverters / energy management systems
Battery Systems
  • Compatible Sungrow battery/storage systems through the Sungrow energy-management ecosystem
System Types
  • Residential EV Charging
  • Commercial EV Charging
  • PV + Battery EV Charging
  • Smart EV Charging
  • Solar EV Charging
Other
  • iHomeManager
  • iSolarCloud
  • Automatic Phase Switching
  • iEnergyCharge App
  • Adaptive Load Management
  • RFID Authentication
  • OCPP 1.6J
  • 4G / Wi-Fi / Ethernet
EV Compatibility
  • EVs supporting IEC Type 2 AC charging
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
