SUNGROW 3.2kWh Solar
Battery Module
ES-SGR-SBR

SUNGROW 3.2kWh Battery Module The SUNGROW SBR Battery Module is a high-voltage lithium iron phosphate (LiFePO₄) battery module designed for residential solar energy storage applications. With 3.2 kWh usable energy and 64 V nominal voltage, it provides reliable high-voltage energy storage with modular expansion capability for compatible SUNGROW SBR battery systems.
Solar Battery

SUNGROW 3.2kWh Solar Battery Module – ES-SGR-SBR

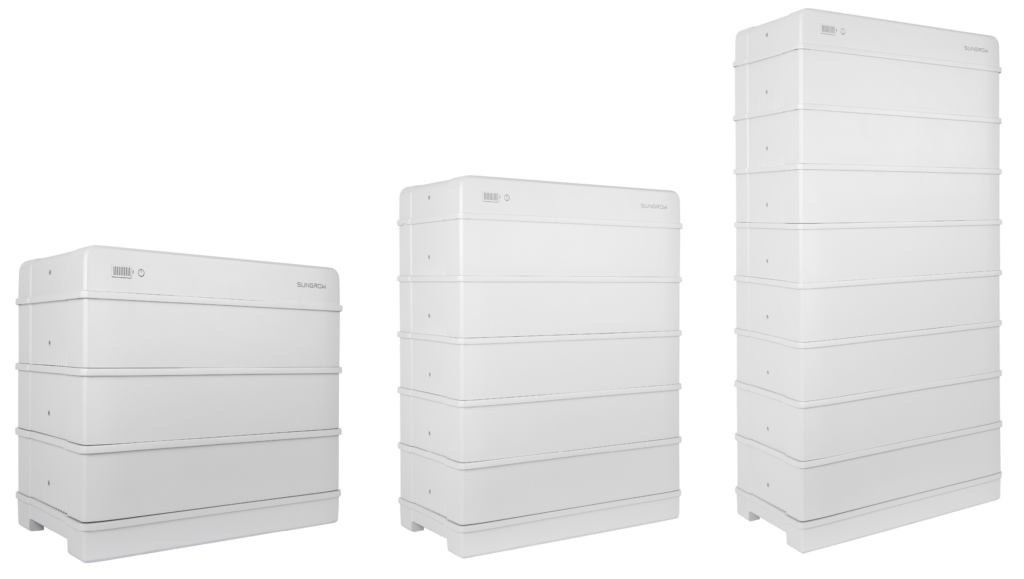

The SUNGROW SBR 3.2kWh Battery Module is a high-voltage LiFePO₄ battery module with 3.2 kWh usable energy and 64 V nominal voltage. It can be combined with additional modules to create SUNGROW SBR battery systems from 6.4 kWh to 25.6 kWh.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand SUNGROW
SKU / Model ES-SGR-SBR Battery Module-3.2kWh
Warranty 10-Year Product and Performance Warranty
Compatible With
  • SUNGROW SBR064 / SBR096 / SBR128 / SBR160 / SBR192 / SBR224 / SBR256 battery systems
Add to Cart Download Datasheet
10-Year Product and Performance Warranty Performance Warranty
625 × 330 × 130 mm (L × W × H) Dimensions
33 kg Weight
CE / CEC / IEC 62619 / IEC 62040 / UN38.3 / VDE 2510-50 / IEC 62477 / IEC 63056 / IEC 61000 / UKCA Certificate
Product Description

SUNGROW 3.2kWh Battery Module

The SUNGROW SBR Battery Module is a high-voltage lithium iron phosphate (LiFePO₄) battery module designed for residential solar energy storage applications. With 3.2 kWh usable energy and 64 V nominal voltage, it provides reliable high-voltage energy storage with modular expansion capability for compatible SUNGROW SBR battery systems.

Product Description

Battery Technical Specifications

Specification Value
Model ES-SGR-SBR Battery Module-3.2kWh
Battery Chemistry LiFePO₄ Prismatic Cell
Rated Energy 3.2 kWh
Usable Energy 3.2 kWh
Depth of Discharge Maximum 100% DOD (settable)
Nominal Voltage 64 V per module
Maximum Continuous Charging Current 30 A
Maximum Continuous Discharging Current 30 A
Communication CAN
Display SOC Indicator / Status Indicator
Short Circuit Current 3,500 A
Protection Over / Under Voltage Protection, Over Current Protection, Over / Under Temperature Protection, DC Breaker
Operating Temperature – Charging 0°C to +50°C
Operating Temperature – Discharging -20°C to +50°C
Relative Humidity 0–95% non-condensing
Maximum Operating Altitude 4,000 m
Cooling Natural Convection
IP Rating IP55
Installation Location Indoor / Outdoor
Mounting Floor Stand
Module Capacity 3.2 kWh
Battery System Configuration 2–8 modules per battery unit
System Capacity 6.4–25.6 kWh depending on configuration
Compatibility
Inverter
  • Compatible SUNGROW SHRT / SHRS / SH8.0–10RS / SH15–25T and supported SBR-compatible hybrid inverters
Battery Systems
  • SUNGROW SBR064 / SBR096 / SBR128 / SBR160 / SBR192 / SBR224 / SBR256
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • Three-Phase Energy Storage
  • Backup Power Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
