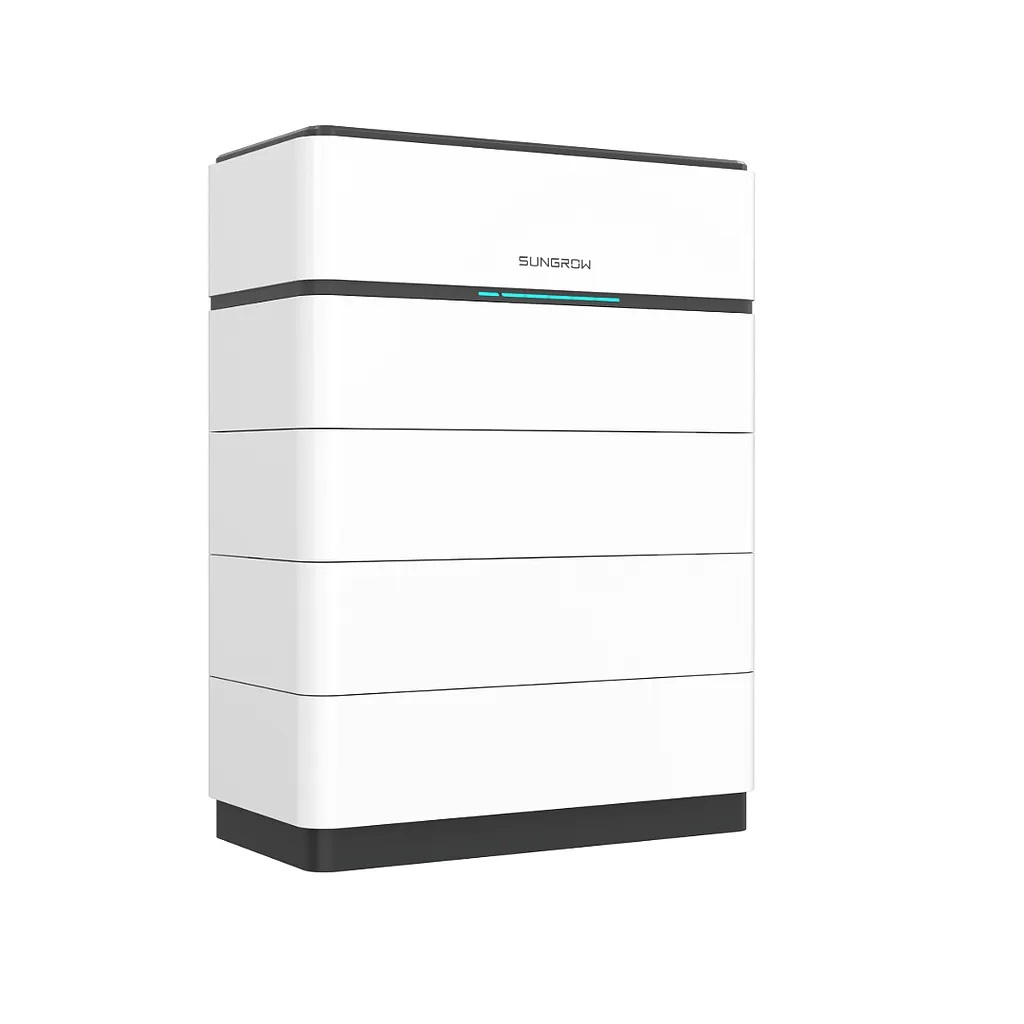

SUNGROW 5kWh Solar
Battery Module
ES-SGR-SBH

High-voltage LiFePO₄ battery module designed for SUNGROW SBH battery systems, with modular configurations from 10 kWh to 40 kWh depending on the number of modules installed.
Solar Battery

SUNGROW 5kWh Solar Battery Module – ES-SGR-SBH

The SUNGROW SBH 5kWh Battery Module is a high-voltage LiFePO₄ battery module providing 5.0 kWh usable energy. Multiple modules can be stacked to create SBH battery systems from 10 kWh to 40 kWh and are compatible with supported SUNGROW hybrid inverter systems.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand SUNGROW
SKU / Model ES-SGR-SBH-5KWH
Warranty 10-Year Product and Performance Warranty
Compatible With
  • SUNGROW SBH100 / SBH150 / SBH200 / SBH250 / SBH300 / SBH350 / SBH400 and compatible SH15/20/25T hybrid inverters
Add to Cart Download Datasheet
10-Year Product and Performance Warranty Performance Warranty
675 × 160 × 350 mm (W × H × D) per module* Dimensions
45 kg per module Weight
CE / CEC / IEC 62619 / IEC 62040 / UN38.3 / VDE 2510-50 / IEC 62477 / IEC 63056 Certificate
Product Description

SUNGROW 5kWh Battery Module

The SUNGROW SBH Battery Module is a high-voltage lithium iron phosphate (LiFePO₄) battery module designed for residential and energy storage applications. With 5.0 kWh usable energy per module, it provides high-voltage energy storage with modular expansion capability for compatible SUNGROW SBH battery systems and SH15/20/25T hybrid inverters.

Product Description

Battery Technical Specifications

Specification Value
Model ES-SGR-SBH-5KWH
Battery Module SBH 5.0 kWh Module
Battery Chemistry LiFePO₄ Prismatic Cell
Rated Energy 5.0 kWh
Usable Energy 5.0 kWh
Depth of Discharge Maximum 100% DOD (settable)
Nominal Voltage 70.4 V per module
Nominal Module Capacity Approximately 71 Ah
Maximum Continuous Charging Current 50 A
Maximum Continuous Discharging Current 50 A
Normal Module Power 3.52 kW
Communication CAN
Display SOC Indicator / Status Indicator
Protection Over / Under Voltage Protection, Over Current Protection, Over / Under Temperature Protection, DC Breaker
Charging Temperature 0°C to +50°C
Discharging Temperature -20°C to +50°C
Relative Humidity 0–95% non-condensing
Maximum Operating Altitude 2,000 m
Cooling Natural Convection
IP Rating IP55
Installation Location Indoor / Outdoor
Mounting Floor Stand
Modules per Battery Unit 2–8 modules
Battery Unit Capacity 10–40 kWh
Maximum Parallel Units 4
Compatibility
Inverter
  • SUNGROW SH15T / SH20T / SH25T and supported SHT-series hybrid inverters
Battery Systems
  • SUNGROW SBH100 / SBH150 / SBH200 / SBH250 / SBH300 / SBH350 / SBH400
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • Three-Phase Energy Storage
  • Backup Power Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
