SOLAREDGE 10kWh
Solar Battery
ES-SEG-BAT-10K

High-voltage Energy Bank battery designed for SolarEdge residential energy storage systems, providing 9.7 kWh usable energy, 5 kW continuous output and scalable storage of up to 29.1 kWh per inverter.
Solar Battery

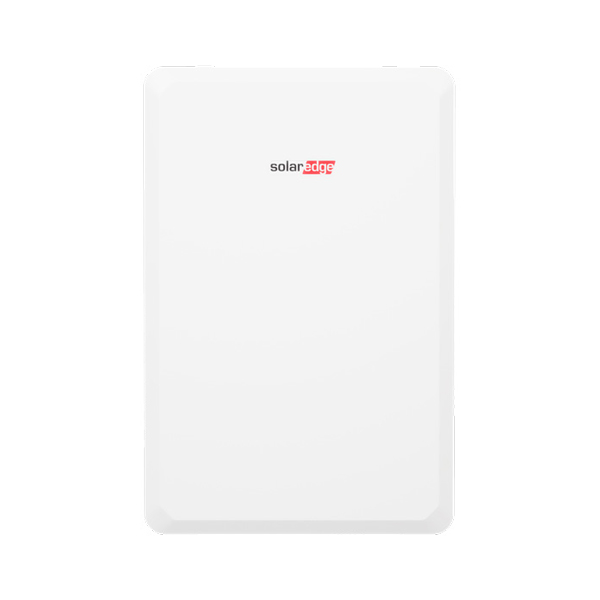

SolarEdge 10kWh Solar Battery – ES-SEG-BAT-10K

The SolarEdge Energy Bank 10kWh is a high-voltage battery with 9.7 kWh usable energy and 5 kW continuous output power. It provides up to 7.5 kW peak backup output for 10 seconds and can be expanded to up to three batteries per inverter for a total usable capacity of 29.1 kWh.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand SolarEdge
SKU / Model ES-SEG-BAT-10K
Warranty 10-Year Product Warranty
Compatible With
  • SolarEdge Genesis Single Phase Inverter, Energy Hub Single Phase Inverter and compatible Three Phase Hybrid Inverters
Add to Cart Download Datasheet
10-Year Product Warranty Performance Warranty
790 × 1179 × 250 mm (W × H × D) Dimensions
108 kg Weight
IEC 62619 / UN38.3 / UL1973 / UL9540 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Certificate
Product Description

SolarEdge Energy Bank 10kWh Battery

The SolarEdge Energy Bank 10kWh is a high-voltage lithium-ion battery designed for residential solar energy storage and backup applications. With 10 kWh nominal capacity and 9.7 kWh usable energy, it provides high-capacity energy storage with scalable expansion capability for compatible SolarEdge inverter systems.

Product Description

Battery Technical Specifications

Specification Value
Model ES-SEG-BAT-10K / BAT-10K1PS0B-01
Battery Chemistry Lithium-Ion / NMC
Nominal Capacity 10 kWh
Usable Energy 9.7 kWh
Depth of Discharge 100%
Voltage Range 350–450 V DC
Continuous Output Power 5 kW
Peak Output Power in Backup 7.5 kW for 10 seconds
Peak Roundtrip Efficiency >94.5%
Warranty 10 years
Communication Wireless*
Batteries per Inverter Up to 3
Operating Temperature -10°C to +50°C
Storage Temperature >3 months -10°C to +30°C
Storage Temperature <3 months -30°C to +60°C
Maximum Operating Altitude 2,000 m
Cooling Natural Convection
Noise at 1 m <25 dBA
IP Rating IP55 – Indoor and Outdoor
Mounting Wall Mount / Floor Stand Mount
Maximum Storage per Inverter 29.1 kWh with 3 batteries
Compatibility
Inverter
  • SolarEdge Genesis Single Phase Inverter / Energy Hub Single Phase Inverter / compatible Three Phase Hybrid Inverter
Battery Systems
  • SolarEdge Energy Bank / SolarEdge Home Energy Storage System
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • Three-Phase Energy Storage
  • Backup Power Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
