SAJ 5.0kWh Solar
Battery Module
B2-5.0-HV5-PLUS

High-voltage LiFePO₄ battery module designed for SAJ B2 HV battery systems, providing scalable energy storage from 5.0 kWh up to 25.0 kWh per battery stack.
Solar Battery

SolarEdge 4.85kWh Solar Battery – BAT-05K48M0B-02

The SolarEdge Home Battery 48V is a 4.85 kWh LFP battery module with 48 V nominal voltage and 5 kW maximum continuous power. It is designed for compatible SolarEdge three-phase energy storage systems and can be expanded with up to five battery modules per inverter.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand SAJ
SKU / Model ES-SEG-BAT-05K48M0B-02
Warranty 7-Year Product and Performance Warranty
Compatible With
  • SolarEdge Home Hub Inverter – Three Phase and compatible SolarEdge StorEdge / Home energy storage systems
Add to Cart Download Datasheet
10-Year Product Warranty Performance Warranty
540 × 500 × 240 mm (W × H × D) Dimensions
54.7 kg Weight
IEC 62619 / IEC 63056 / IEC 62040-1 / VDE-AR-E 2510-50 / UN38.3 / UL9540A Certificate
Product Description

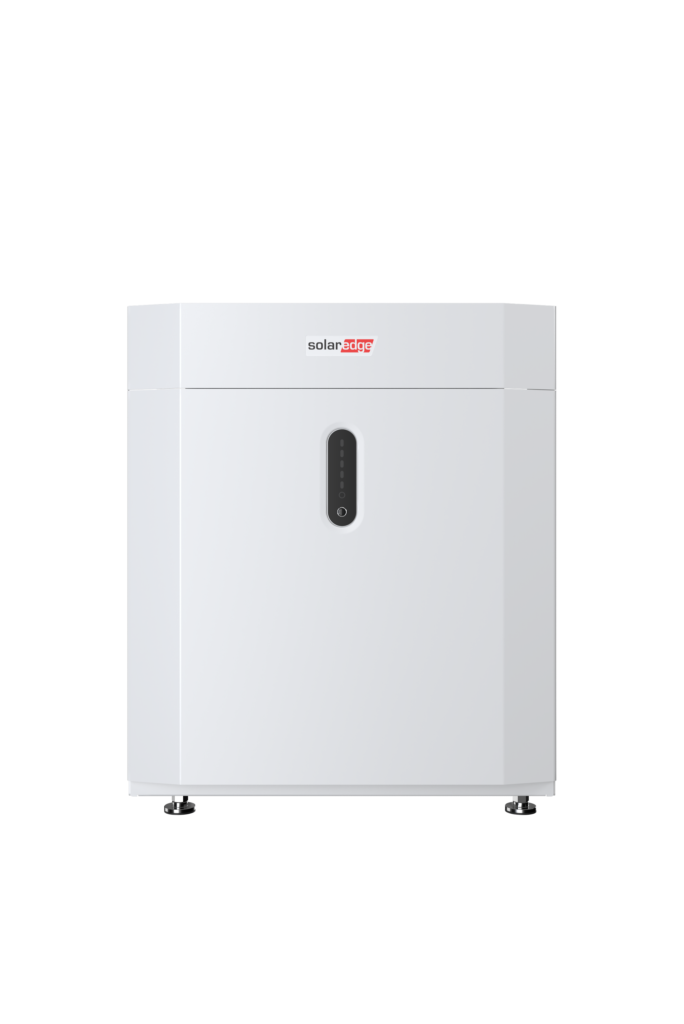

SolarEdge 4.85kWh Home Battery Module

The SolarEdge Home Battery 48V is a low-voltage lithium iron phosphate (LFP / LiFePO₄) battery module designed for residential solar energy storage and three-phase applications. With 4.85 kWh usable energy and 48 V nominal voltage, it provides reliable energy storage with modular expansion capability for compatible SolarEdge Home Hub and StorEdge inverter systems.

Product Description

Battery Technical Specifications

Specification Value
Model BAT-05K48M0B-02
Battery Chemistry LFP (LiFePO₄)
Usable Energy 4.85 kWh
Nominal Voltage 48 V
Nominal Capacity 100 Ah
Maximum Continuous Charge Current 100 A
Maximum Continuous Discharge Current 100 A
Maximum Continuous Power 5 kW
Charging Temperature -10°C to +50°C
Discharging Temperature -10°C to +50°C
Storage Temperature -10°C to +45°C
Maximum Operating Altitude 2,000 m
Communication CAN / RS485
IP Rating IP65 / NEMA 3R
Cooling Natural Convection
Noise Emission <25 dBA at 1 m
Mounting Floor Stand and Wall Attach
Maximum Modules per Inverter 5
Maximum Modules per Tower 4
Maximum Battery Towers 2
Compatibility
Inverter
  • SolarEdge Home Hub Inverter – Three Phase; compatible SolarEdge StorEdge systems
Battery Systems
  • SolarEdge Home Battery 48V / Three-Phase Battery System
System Types
  • Hybrid Solar Systems
  • Battery Energy Storage Systems
  • Residential Energy Storage
  • Commercial Energy Storage
  • Backup Power Systems
Other
  • Solar PV Systems
  • Energy Management
  • Load Shifting
  • Self-Consumption
  • Backup Power
  • Energy Storage
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
