Anker SOLIX V1
Smart EV Charger
22kW Cable 7m

The Anker SOLIX V1 22kW EV Charger delivers fast three-phase AC charging with a convenient 7m Type 2 cable. It supports smart charging, solar integration, scheduled charging and intelligent energy management for compatible solar and battery systems.
EV Chargers

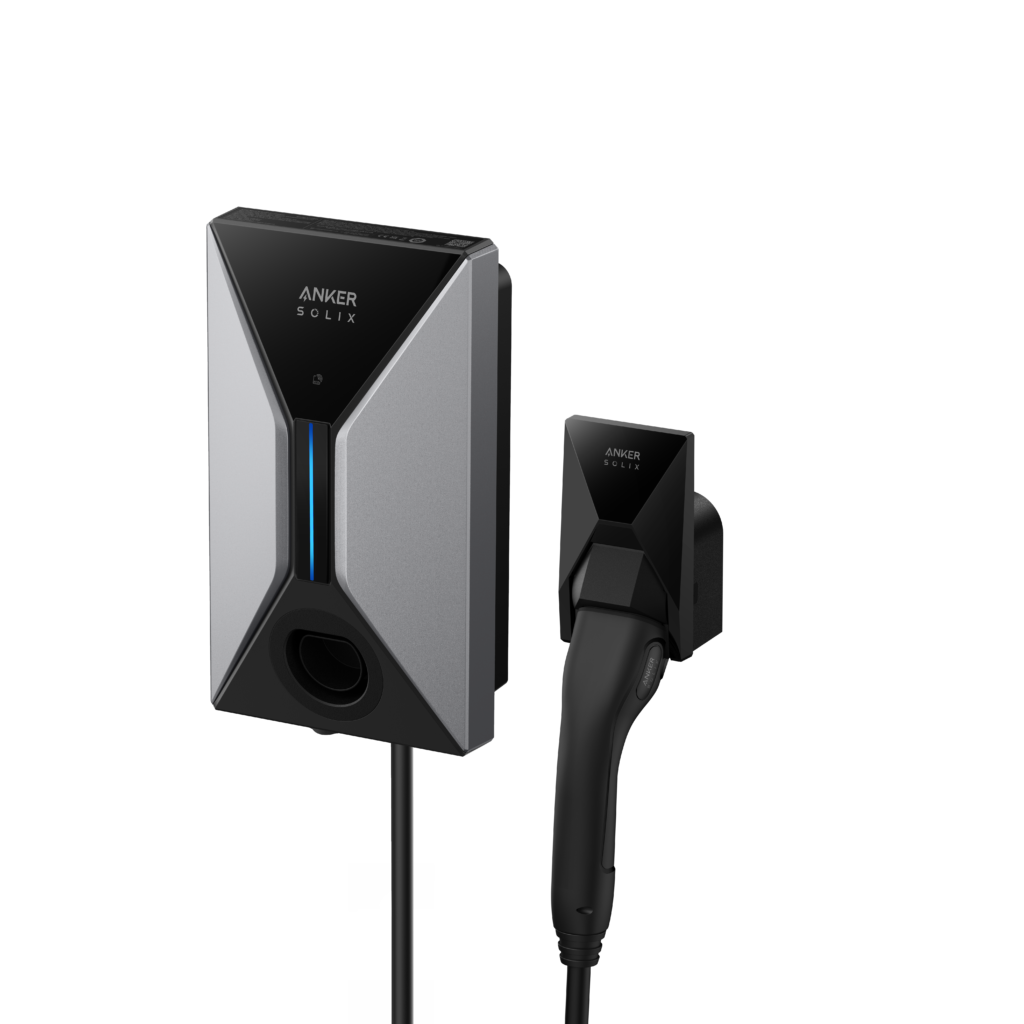

Anker SOLIX V1 Smart EV Charger – 22kW Cable 7m

The Anker SOLIX V1 22kW is a three-phase AC EV charger delivering up to 22kW charging power through a 7m Type 2 cable. It supports smart charging, solar charging, scheduled charging and intelligent energy management, making it suitable for residential and commercial EV charging applications.

$850.00
Inc. GST / Per Panel
In Stock
Brand Anker SOLIX
SKU / Model ANK-SOLIX-V1-22kW
Warranty 3 Years Limited
Compatible With
  • Battery Systems
  • Anker SOLIX compatible PV + Battery Systems
  • Compatible Smart Meter Systems
  • Type 2 EVs / PHEVs
Add to Cart Download Datasheet
22 kW Rated Power
3 Years Product Warranty Performance Warranty
211 × 360 × 125 mm Dimensions
2.68 kg Weight
Product Description

Anker SOLIX V1 22kW Smart EV Charger

The Anker SOLIX V1 22kW is a high-power three-phase AC EV charger designed for residential and commercial electric vehicle charging. It provides up to 22kW charging power with a 7m Type 2 charging cable and supports intelligent charging, solar energy integration, scheduled charging and smart energy management.

Product Description

Battery Technical Specifications

Specification Value
Rated Charging Power 22 kW
Nominal Input Voltage 400 V ±20%
Phase Type Three Phase
Nominal Input Current 32 A
Nominal Frequency 50 Hz
Vehicle Connection Type 2
Cable Length 7 m
IP Protection IP65 for cable version
Impact Protection IK10
Operating Temperature -30°C to +50°C
Relative Humidity 5%–95% non-condensing
Maximum Operating Altitude 2,000 m
Communication Wi-Fi / Bluetooth
Charging Modes Fast Charging / Solar Charging / Grid Charging / Scheduled Charging / Smart Charging
Solar Charging Yes
Battery Integration Yes, with compatible energy storage systems
Monitoring Anker SOLIX App
Dynamic Load Control Yes – with compatible smart meter / energy system
Overcurrent Protection Integrated
Overheating Protection Integrated
Leakage Protection Type A + DC 6mA detection
Temperature Monitoring Integrated
Cable Locking App-controlled E-Lock
External RCD Type A 30mA required according to local regulations
Connector Type 2
Compatibility
Inverter
  • "Compatible Anker SOLIX PV / Energy Systems Compatible third-party systems when supported through a compatible smart meter"
Battery Systems
  • Compatible Anker SOLIX Battery / Energy Storage Systems
System Types
  • Residential EV Charging
  • Commercial EV Charging
  • Solar EV Charging
  • PV + Battery EV Charging
  • Smart EV Charging
Other
  • Anker SOLIX App Monitoring
  • Wi-Fi / Bluetooth Control
  • Solar Charging
  • Scheduled Charging
  • Dynamic Load Management
  • RFID / Smart Access
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
