The AlphaESS SMILE-M5 5kWh battery module is a modular LFP energy storage solution designed for residential solar applications. With 5kWh nominal capacity, 100% DoD, IP65 protection and a 10-year warranty, it provides reliable energy storage and can be expanded by connecting additional battery modules in parallel.

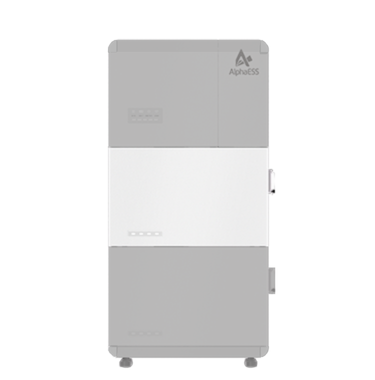

AlphaESS SMILE-M5 5kWh Battery Module
The AlphaESS SMILE-M-BAT-5P is a high-performance lithium iron phosphate (LFP) battery module designed for residential energy storage applications. With a nominal capacity of 5kWh, the module forms part of the modular SMILE-M5 energy storage system and can be expanded by connecting multiple battery modules in parallel. The system supports 100% depth of discharge and is designed for reliable residential energy storage and backup applications.
Battery Technical Specifications
| Specification | Value |
|---|---|
| Battery Type | Lithium Iron Phosphate (LFP / LiFePO₄) |
| Nominal Capacity | 5 kWh |
| Usable Capacity | 5 kWh |
| Depth of Discharge | 100% |
| Nominal Voltage | 51.2V |
| Model | SMILE-M-BAT-5P |
| Battery Chemistry | LFP (LiFePO₄) |
| Maximum Charging Current | 100 A |
| Maximum Discharging Current | 100 A |
| Operating Temperature | 0°C to +50°C (charging); -10°C to +50°C (discharging) |
| IP Rating | IP65 |
| Dimensions | 620 × 240 × 390 mm |
| Weight | 49.5 kg |
| Modules | 1–4 in parallel |
Complete your solar system
EV Charger
Solar Battery
IEC 62619 / IEC 60730 / EN 62477 / IEC 63056 / IEC 62040 / CE / CEC / VDE 2510
Power Output
EV Charger
Solar Battery
IEC 62619 / IEC 62040-1 / IEC 63056 / VDE 2510 / CE / CEC / RCM / UN38.3
