GOODWE
11kW Solar Inverter

The GoodWe HCA G2 11kW EV Charger delivers fast and intelligent three-phase AC charging with solar integration, dynamic load control and flexible charging modes. It is suitable for indoor and outdoor installation and supports IEC Type 2 EV charging.
EV Charger

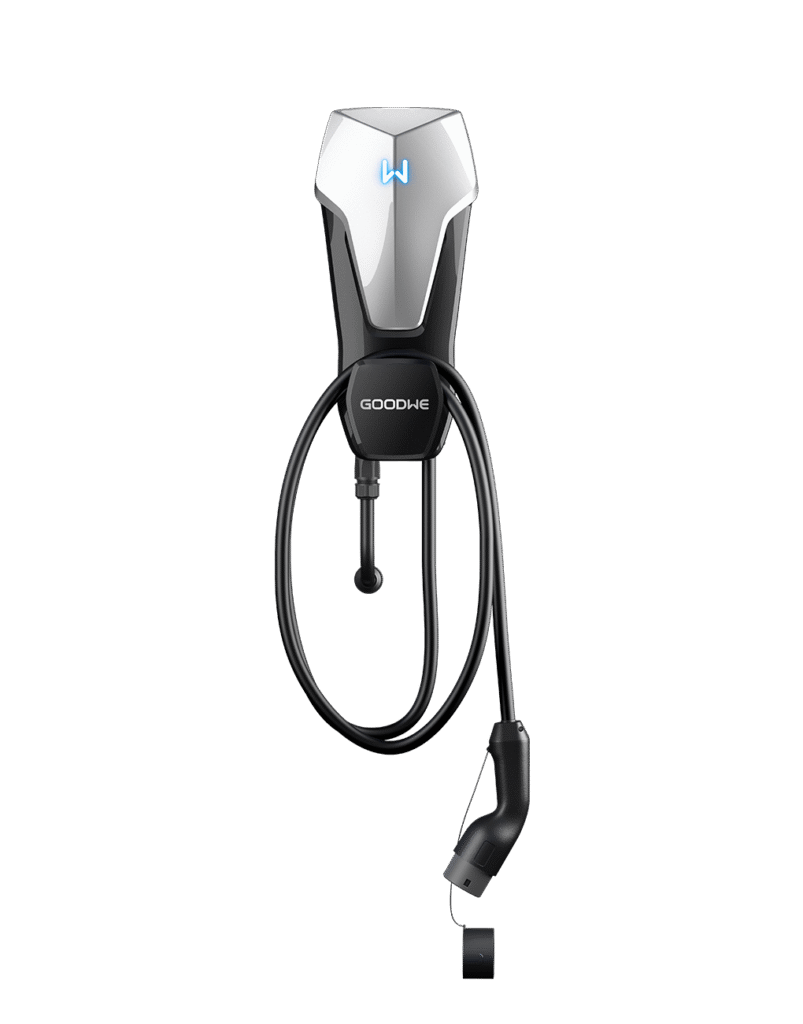

GOODWE 11kW EV Charger – GW-GW11K-HCA-20

The GoodWe HCA G2 11kW EV Charger is a three-phase AC EV charger featuring PV-priority charging, PV + battery charging, scheduled charging and dynamic load control. With IP66 protection and IEC Type 2 connectivity, it is suitable for indoor and outdoor EV charging installations.

$5,400.00
Inc. GST / Per Panel
In Stock
Brand GOODWE
SKU / Model GW-GW11K-HCA-20
Warranty 2 Year
Compatible With
  • GoodWe compatible PV systems
  • Battery Systems
Add to Cart Download Datasheet
11 kWh Rated Power
2 Year Performance Warranty
208 × 450 × 170 mm Dimensions
5.4 kg with 6m cable / 5.6 kg with 7.5m cable Weight
Product Description

GoodWe HCA G2 11kW AC EV Charger

The GoodWe GW11K-HCA-20 is an 11kW three-phase AC EV charger designed for residential and commercial electric vehicle charging. It supports PV-priority charging, PV + battery charging, scheduled charging and dynamic load control, allowing EV charging to be integrated with compatible GoodWe solar and energy storage systems.

Product Description

EV Charger Technical Specifications

Specification Value
Rated Charging Power 11 kW
Nominal Input Voltage 400 V
Input Configuration 3L / N / PE
Nominal Input Current 16 A
Nominal Output Voltage 400 V
Nominal Output Current 16 A
AC Grid Frequency 50 / 60 Hz
IP Protection IP66
Operating Temperature -30°C to +55°C*
Relative Humidity 5%–95% non-condensing
Maximum Operating Altitude 2,000 m
Cooling Method Natural Convection
Solar Charging Yes
Battery Integration PV + Battery charging supported
Monitoring GoodWe SEMS+ App
Dynamic Load Control Yes
Overcurrent Protection Integrated
Overvoltage Protection Integrated
Over Temperature Protection Integrated
Ground Fault Protection Integrated
AC Surge Protection Type III
Emergency Power Off Integrated
Communication Bluetooth / Wi-Fi / RS485 ×2 / LAN
Connector Type Type 2
Charging Modes Fast Charging / PV Priority / PV + Battery / Scheduled Charging / Dynamic Load Control
Compatibility
Inverter
  • Compatible GoodWe PV Inverters
Battery Systems
  • Compatible GoodWe Battery / Hybrid Systems
System Types
  • Residential EV Charging
  • PV + Battery EV Charging
  • Commercial EV Charging
  • Smart EV Charging
  • Solar EV Charging
Other
  • SEMS+ Monitoring
  • RFID Authentication
  • Dynamic Load Management
  • Scheduled Charging
EV Compatibility
  • EVs supporting IEC Type 2 AC charging
Documents

Downloads & Documentation

Product Datasheet Technical specifications & performance data
PDF Download
Installation Manual Mounting, wiring & commissioning guide
PDF Download
Warranty Document Full 25-year performance warranty terms
PDF Download
