FRONIUS
WATTPILOT FLEX HOME 22 C6

The Fronius Wattpilot Flex Home 22 C6 provides intelligent AC EV charging up to 22 kW, with dynamic PV surplus charging, automatic 1-/3-phase switching and smart energy management for residential solar systems.
EV Charger

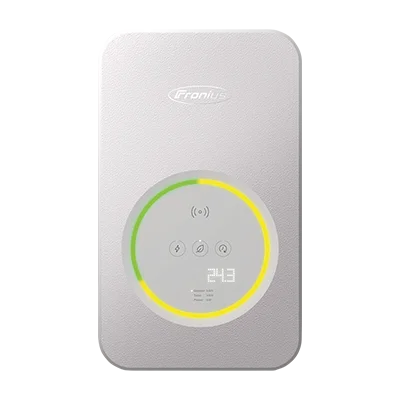

FRONIUS WATTPILOT FLEX HOME 22 C6

The Fronius Wattpilot Flex Home 22 C6 is a 22 kW three-phase AC EV charger with 7.4 kW single-phase capability, dynamic solar PV charging, automatic 1-/3-phase switching, dynamic load balancing, RFID authentication and Solar.wattpilot app monitoring.

$11,300.00
Inc. GST / Per Panel
In Stock
Brand FRONIUS
SKU / Model Wattpilot Flex Home 22 C6
Warranty 3 Years
Compatible With
  • Fronius PV systems and compatible third-party PV systems when used with appropriate Fronius components such as Smart Meter
Add to Cart Download Datasheet
22 kWh Rated Power
3 Year Performance Warranty
325 × 195 × 105 mm (H × W × D) Dimensions
5.4 kg Weight
Product Description

Fronius Wattpilot Flex Home 22 C6 AC EV Charger

The Fronius Wattpilot Flex Home 22 C6 is a permanently installed AC EV charger designed for residential electric vehicle charging. It supports up to 22 kW three-phase charging and up to 7.4 kW single-phase charging, with configurable charging current from 6–32 A. It supports dynamic PV surplus charging, automatic 1-/3-phase switching, dynamic load balancing, RFID authentication and control through the Solar. Wattpilot app.

Product Description

EV Charger Technical Specifications

Specification Value
Solar Charging Yes – dynamic PV surplus charging from 1.38–22 kW with automatic 1-/3-phase switching
Battery Integration Can use available PV/battery energy through compatible energy-management/PV systems; PV optimisation supported with suitable Fronius equipment
Monitoring Fronius Solar.wattpilot App
Dynamic Load Control Yes – integrated Dynamic Load Balancing; supports an unlimited number of charging stations according to Fronius documentation
Protection Integrated residual current protection: 20 mA AC + 6 mA DC; IP66 protection; IK08 impact resistance
Connector Type Type 2 charging plug
Charging Modes Standard Mode / Eco Mode / Next Trip Mode / PV Surplus Charging / Flexible Electricity Tariff Charging
Maximum Charging Power 7.4 kW 1-phase / 22 kW 3-phase
Nominal Voltage 230/240 V 1-phase / 400/415 V 3-phase
Configurable Current 6–32 A
Grid Supply TT / TN / IT
Grid Frequency 50 Hz
Charging Mode Mode 3 according to IEC 61851-1
PV Optimisation Dynamic PV surplus charging 1.38–22 kW
Standby Consumption 3.5–6.8 W depending on settings
Communication LAN + WLAN
Protocol OCPP 1.6 J
RFID Yes
ISO 15118 Hardware prepared
Compatibility
Inverter
  • Compatible Fronius PV inverters; PV surplus optimisation can also work with suitable third-party systems when combined with appropriate Fronius components
Battery Systems
  • Compatible PV/battery energy-management systems; available PV surplus and battery energy can be managed through the connected energy system
System Types
  • Residential EV Charging
  • PV + Battery EV Charging
  • 1-Phase / 3-Phase EV Charging
  • Smart EV Charging
  • Solar EV Charging
Other
  • Solar.wattpilot App
  • RFID Authentication
  • Dynamic Load Management
  • OCPP 1.6 J
  • LAN / WLAN
  • Automatic 1-/3-phase switching
EV Compatibility
  • EVs supporting IEC Type 2 AC charging
